KBP Architecture > Deployment View
Section 7
Deployment View
Both diagrams are generated from the Archify sources next to them; see Diagrams for how to edit and regenerate them.

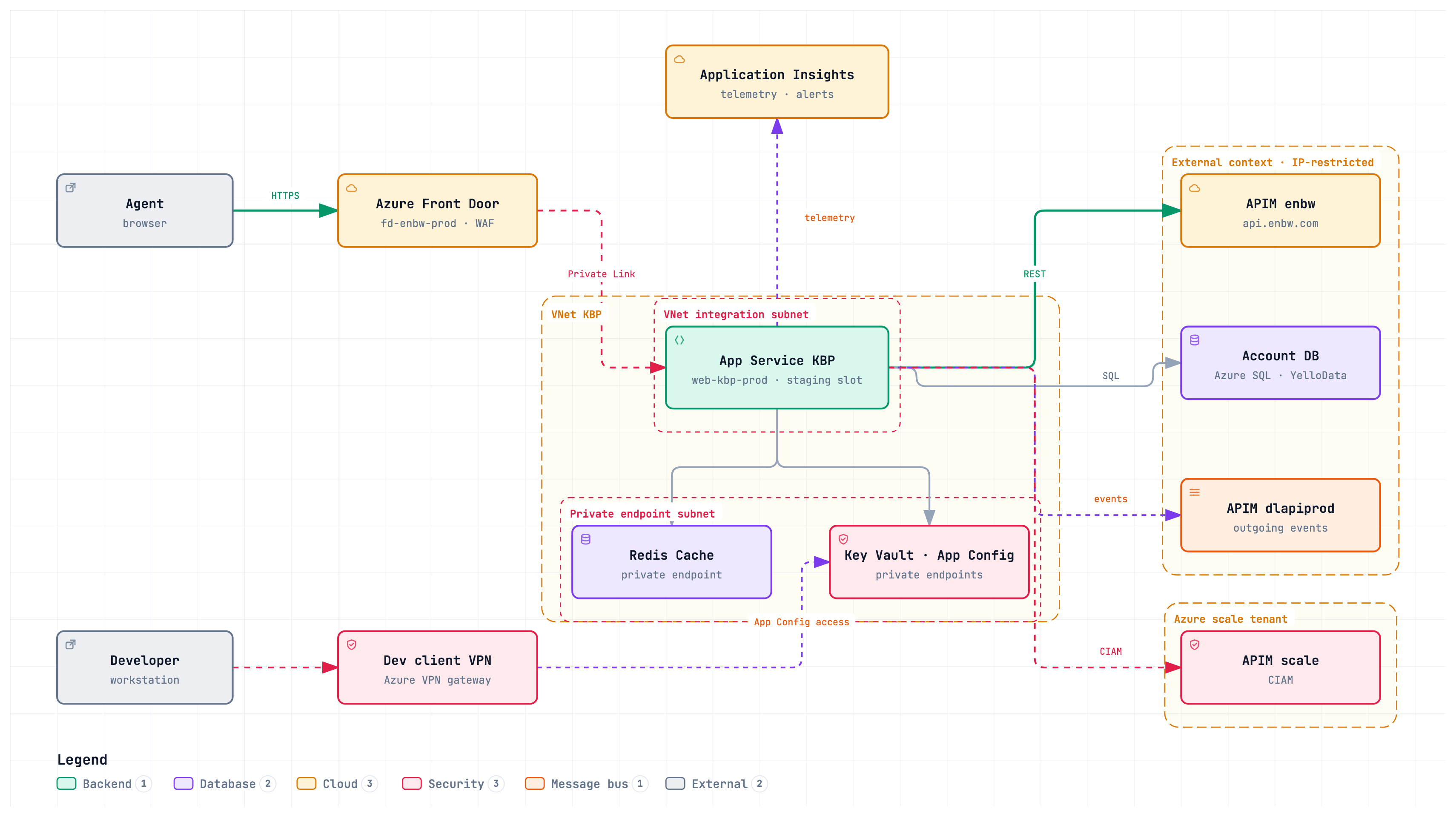

Resources Overview
The Azure resources KBP runs on, grouped by network placement: the public path through the shared Front Door, the VNet with its integration and private-endpoint subnets, and the IP-restricted shared resources outside the KBP network.

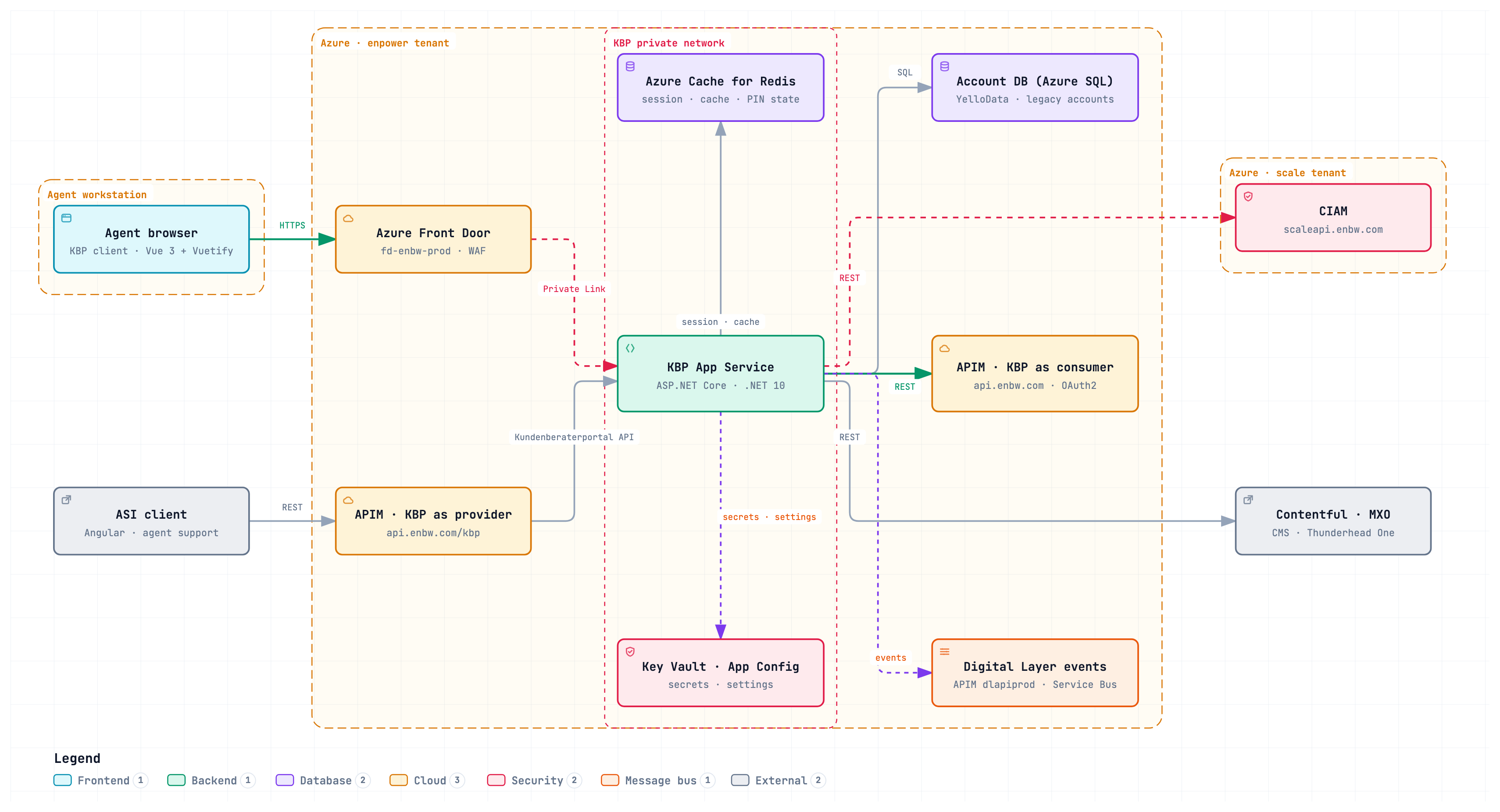

Detailed Deployment Overview
How the software is deployed onto those resources: the Vue client served by the App Service, the Kundenberaterportal API that ASI calls through API Management, and the backend APIs KBP consumes.
